基本ゲートを作る / or8way、mux4way16、mux8way16、dmux4way、dmux8way

The Elements of Computing Systems, second edition: Building a Modern Computer from First Principles

p.27

今度は下の回路を作る。15個の基本ゲートが全部出来た。これでChapter 1 Boolean Logicは終わり。

  • 8ビット入力のreduction Orゲート
  • 16ビット幅×4本のなかから1本を選んで出力する回路
  • 16ビット幅×8本のなかから1本を選んで出力する回路
  • 4ビットのなかから1ビットを選んで出力する回路
  • 8ビットのなかから1ビットを選んで出力する回路

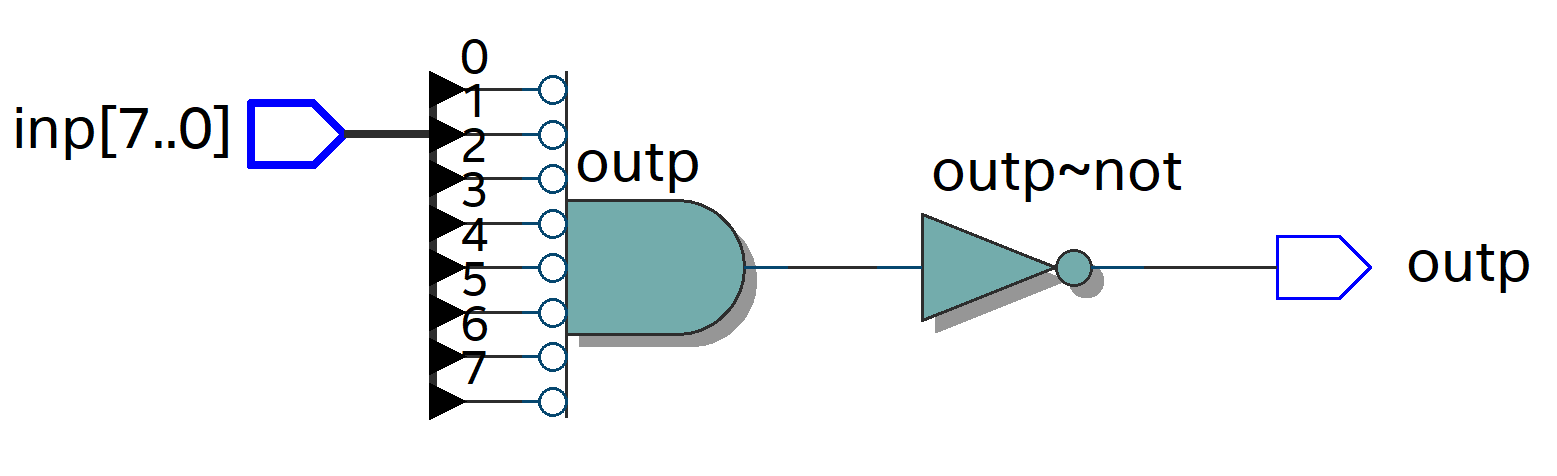

or8way:

library ieee;
use ieee.std_logic_1164.all;

--いわゆるreduction演算である。
entity or8way is
    port (
        inp: in std_logic_vector(7 downto 0);
        outp: out std_logic
    );
end entity;

architecture behavior of or8way is
    signal temp_or: std_logic_vector(0 to 5);
begin
    stage_0: for i in 0 to 3 generate
        temp_or(i) <= (inp(i*2) nand '1') nand (inp(i*2+1) nand '1');
    end generate;
    stage_1: for i in 0 to 1 generate
        temp_or(i+4) <= (temp_or(i*2) nand '1') nand (temp_or(i*2+1) nand '1');
    end generate;

    /*
    temp_or(0) <= (inp(0) nand '1') nand (inp(1) nand '1');
    temp_or(1) <= (inp(2) nand '1') nand (inp(3) nand '1');
    temp_or(2) <= (inp(4) nand '1') nand (inp(5) nand '1');
    temp_or(3) <= (inp(6) nand '1') nand (inp(7) nand '1');
    */
    /*
    temp_or(4) <= (temp_or(0) nand '1') nand (temp_or(1) nand '1');
    temp_or(5) <= (temp_or(2) nand '1') nand (temp_or(3) nand '1');
    */

    outp <= (temp_or(4) nand '1') nand (temp_or(5) nand '1');
end architecture;

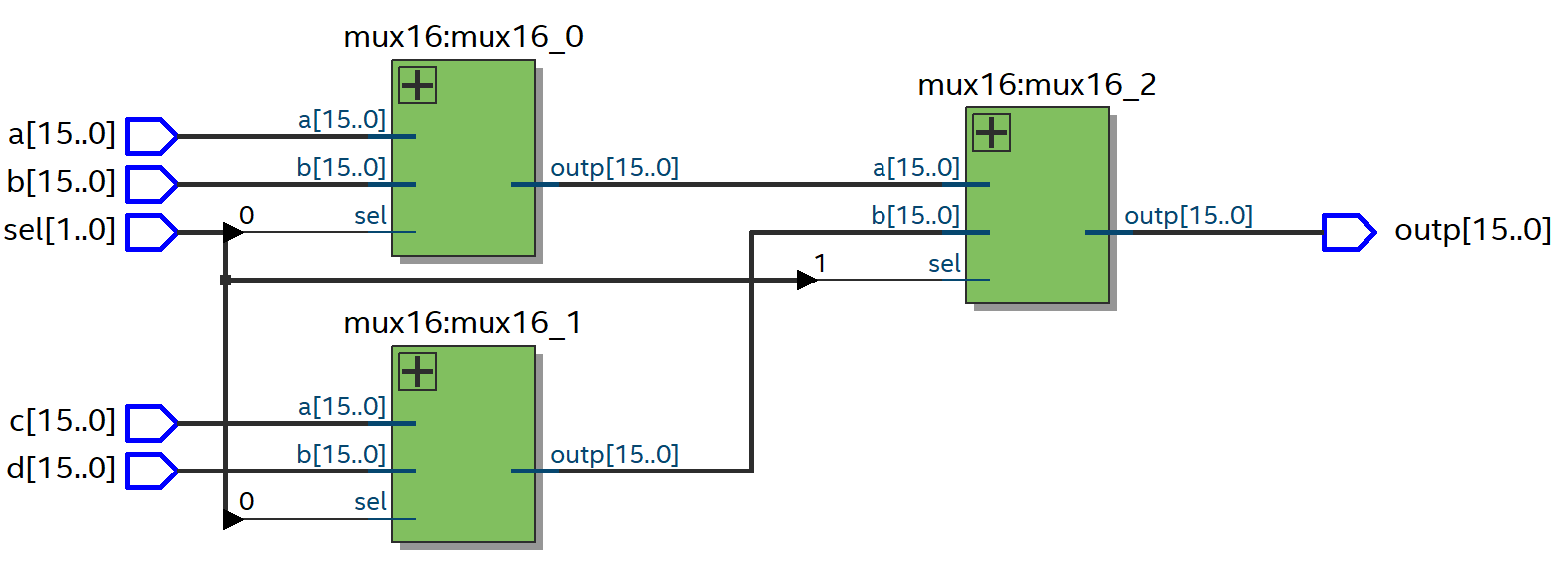

mux4way16:

library ieee;
use ieee.std_logic_1164.all;

entity mux4way16 is
    port (
        a, b, c, d: in std_logic_vector(15 downto 0);
        sel: in std_logic_vector(1 downto 0);
        outp: out std_logic_vector(15 downto 0)
    );
end entity;

architecture behavior of mux4way16 is
    signal temp_out_0, temp_out_1: std_logic_vector(15 downto 0);
begin
    mux16_0: entity work.mux16
    port map (
        a => a,
        b => b,
        sel => sel(0),
        outp => temp_out_0
    );
    mux16_1: entity work.mux16
    port map (
        a => c,
        b => d,
        sel => sel(0),
        outp => temp_out_1
    );
    mux16_2: entity work.mux16
    port map (
        a => temp_out_0,
        b => temp_out_1,
        sel => sel(1),
        outp => outp
    );
end architecture;

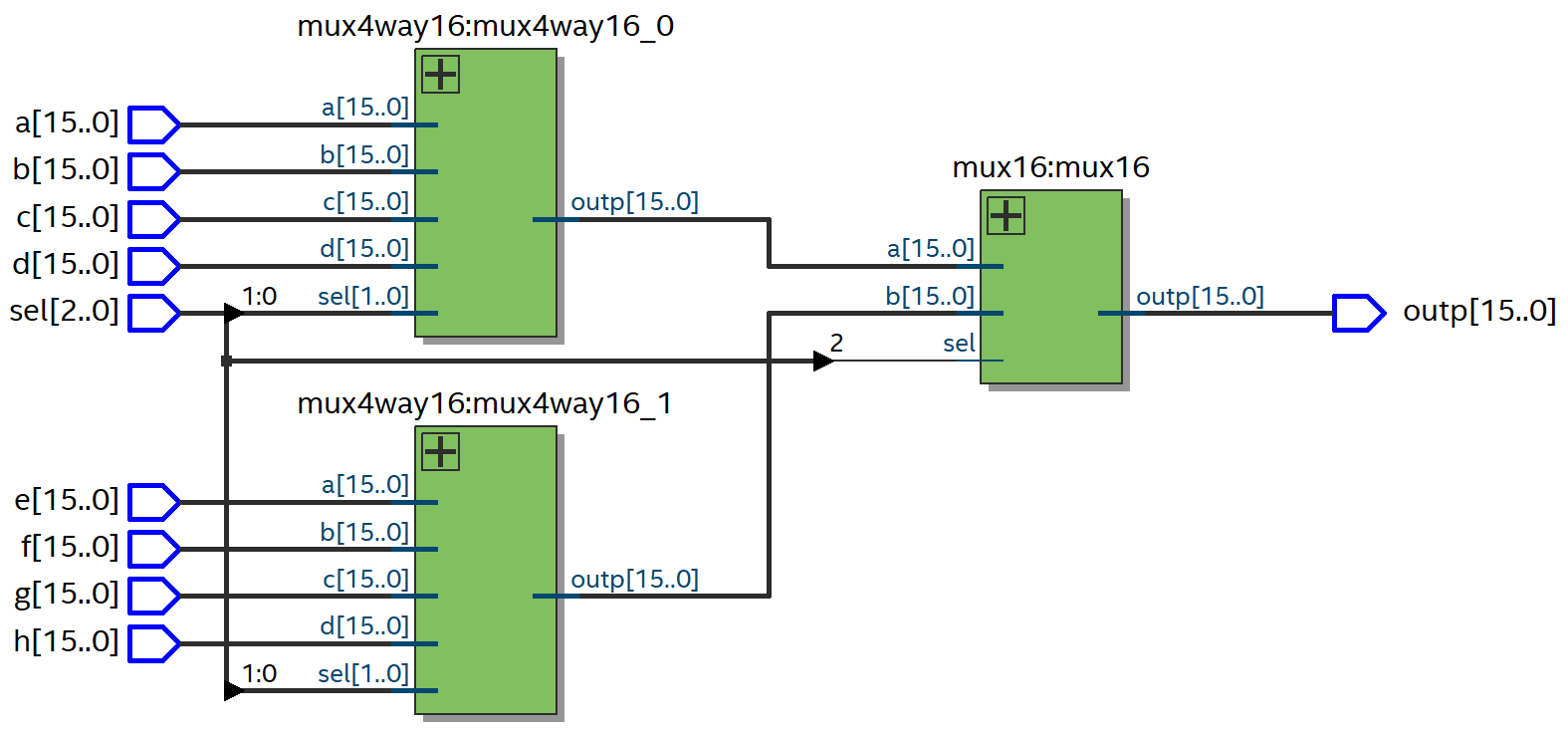

mux8way16:

library ieee;
use ieee.std_logic_1164.all;

entity mux8way16 is
    port (
        a, b, c, d, e, f, g, h: in std_logic_vector(15 downto 0);
        sel: in std_logic_vector(2 downto 0);
        outp: out std_logic_vector(15 downto 0)
    );
end entity;

architecture behavior of mux8way16 is
    signal temp_out_0, temp_out_1: std_logic_vector(15 downto 0);
begin
    mux4way16_0: entity work.mux4way16
    port map (
        a => a,
        b => b,
        c => c,
        d => d,
        sel => sel(1 downto 0),
        outp => temp_out_0
    );
    mux4way16_1: entity work.mux4way16
    port map (
        a => e,
        b => f,
        c => g,
        d => h,
        sel => sel(1 downto 0),
        outp => temp_out_1
    );
    mux16: entity work.mux16
    port map (
        a => temp_out_0,
        b => temp_out_1,
        sel => sel(2),
        outp => outp
    );
end architecture;

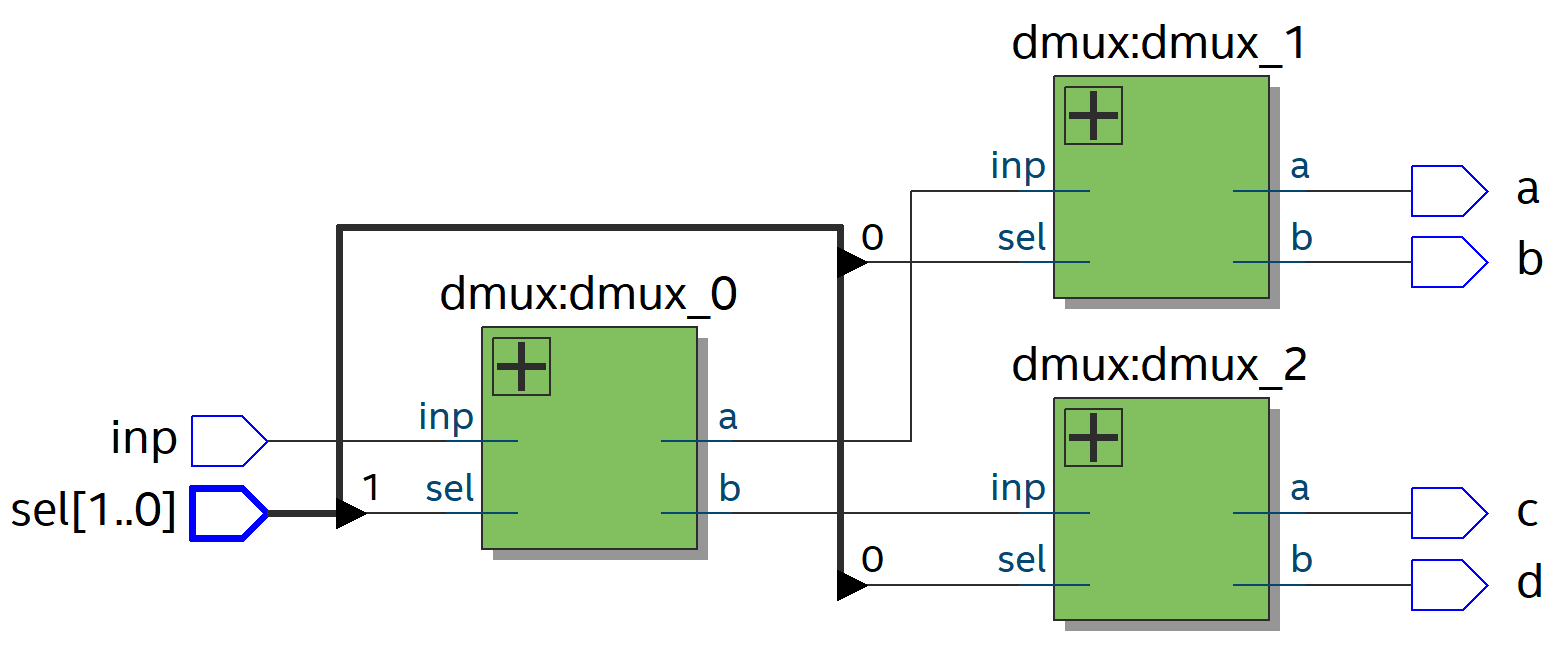

dmux4way:

library ieee;
use ieee.std_logic_1164.all;

entity dmux4way is
    port (
        inp: in std_logic;
        sel: in std_logic_vector(1 downto 0);
        a, b, c, d: out std_logic
    );
end entity;

architecture behavior of dmux4way is
    signal temp_dmux_0, temp_dmux_1: std_logic;
begin
    dmux_0: entity work.dmux
    port map (
        inp => inp,
        sel => sel(1),
        a => temp_dmux_0,
        b => temp_dmux_1
    );
    dmux_1: entity work.dmux
    port map (
        inp => temp_dmux_0,
        sel => sel(0),
        a => a,
        b => b
    );
    dmux_2: entity work.dmux
    port map (
        inp => temp_dmux_1,
        sel => sel(0),
        a => c,
        b => d
    );
end architecture;

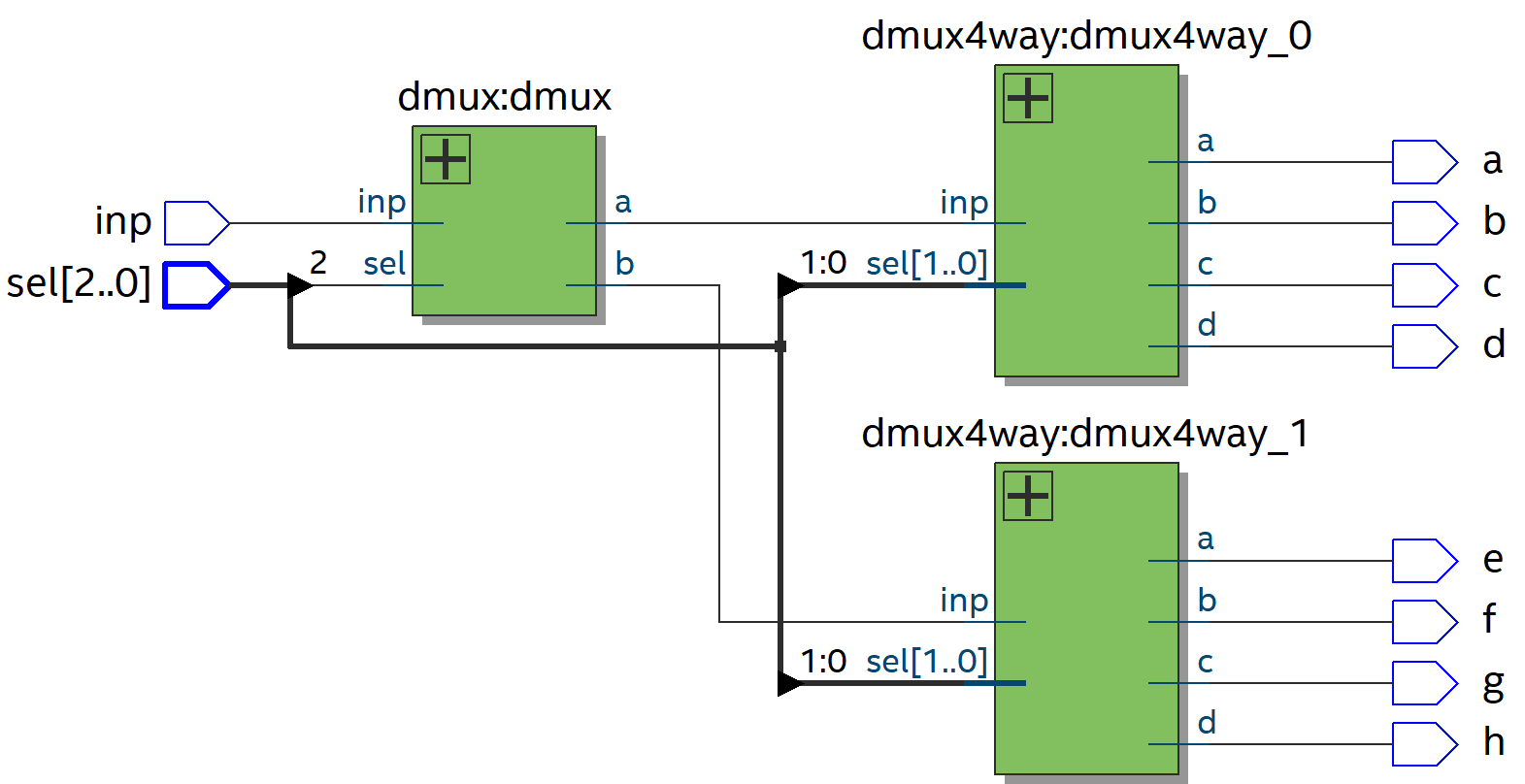

dmux8way:

library ieee;
use ieee.std_logic_1164.all;

entity dmux8way is
    port (
        inp: in std_logic;
        sel: in std_logic_vector(2 downto 0);
        a, b, c, d, e, f, g, h: out std_logic
    );
end entity;

architecture behavior of dmux8way is
    signal temp_dmux_0, temp_dmux_1: std_logic;
begin
    dmux: entity work.dmux
    port map (
        inp => inp,
        sel => sel(2),
        a => temp_dmux_0,
        b => temp_dmux_1
    );
    dmux4way_0: entity work.dmux4way
    port map (
        inp => temp_dmux_0,
        sel => sel(1 downto 0),
        a => a,
        b => b,
        c => c,
        d => d
    );
    dmux4way_1: entity work.dmux4way
    port map (
        inp => temp_dmux_1,
        sel => sel(1 downto 0),
        a => e,
        b => f,
        c => g,
        d => h
    );
end architecture;
