コンピューターアーキテクチャー / 命令デコーダーを作る

Chapter 5

テキストにはほとんど解説がない。ジャンプ命令についてはSimplify[]函数で簡単化した。BooleanMinimize[]函数を使ってもよい。ルールをゆるめてnand以外も使う。

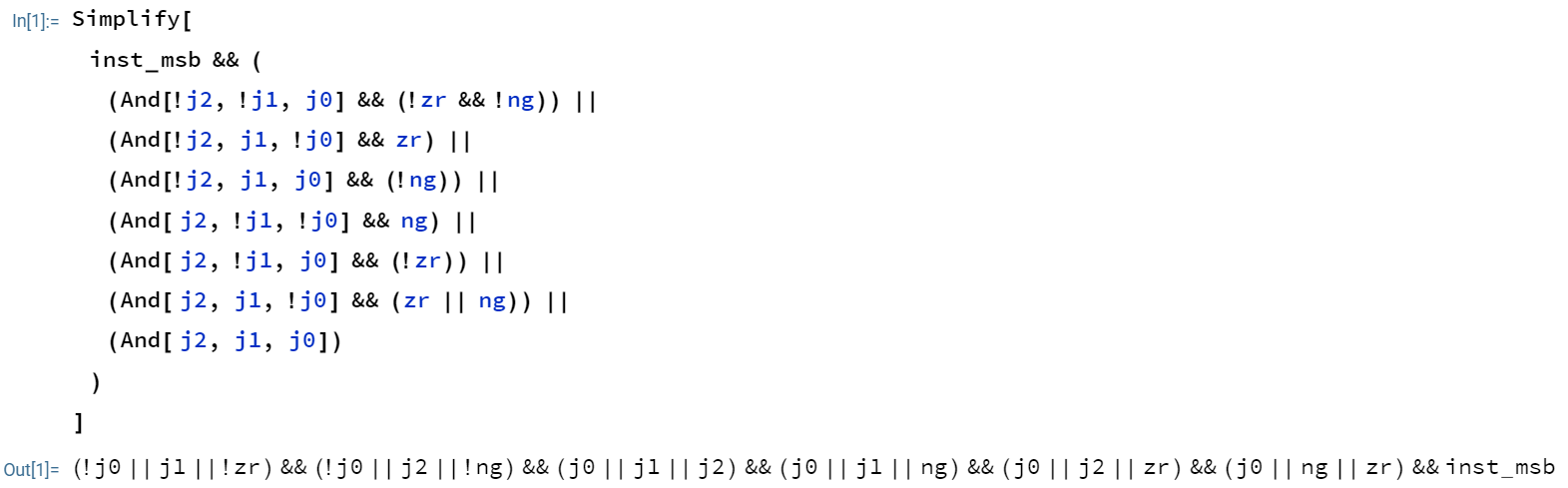

Simplify[
inst_msb && (
(And[!j2, !j1, j0] && (!zr && !ng)) ||
(And[!j2, j1, !j0] && zr) ||
(And[!j2, j1, j0] && (!ng)) ||
(And[ j2, !j1, !j0] && ng) ||
(And[ j2, !j1, j0] && (!zr)) ||
(And[ j2, j1, !j0] && (zr || ng)) ||
(And[ j2, j1, j0])
)
]

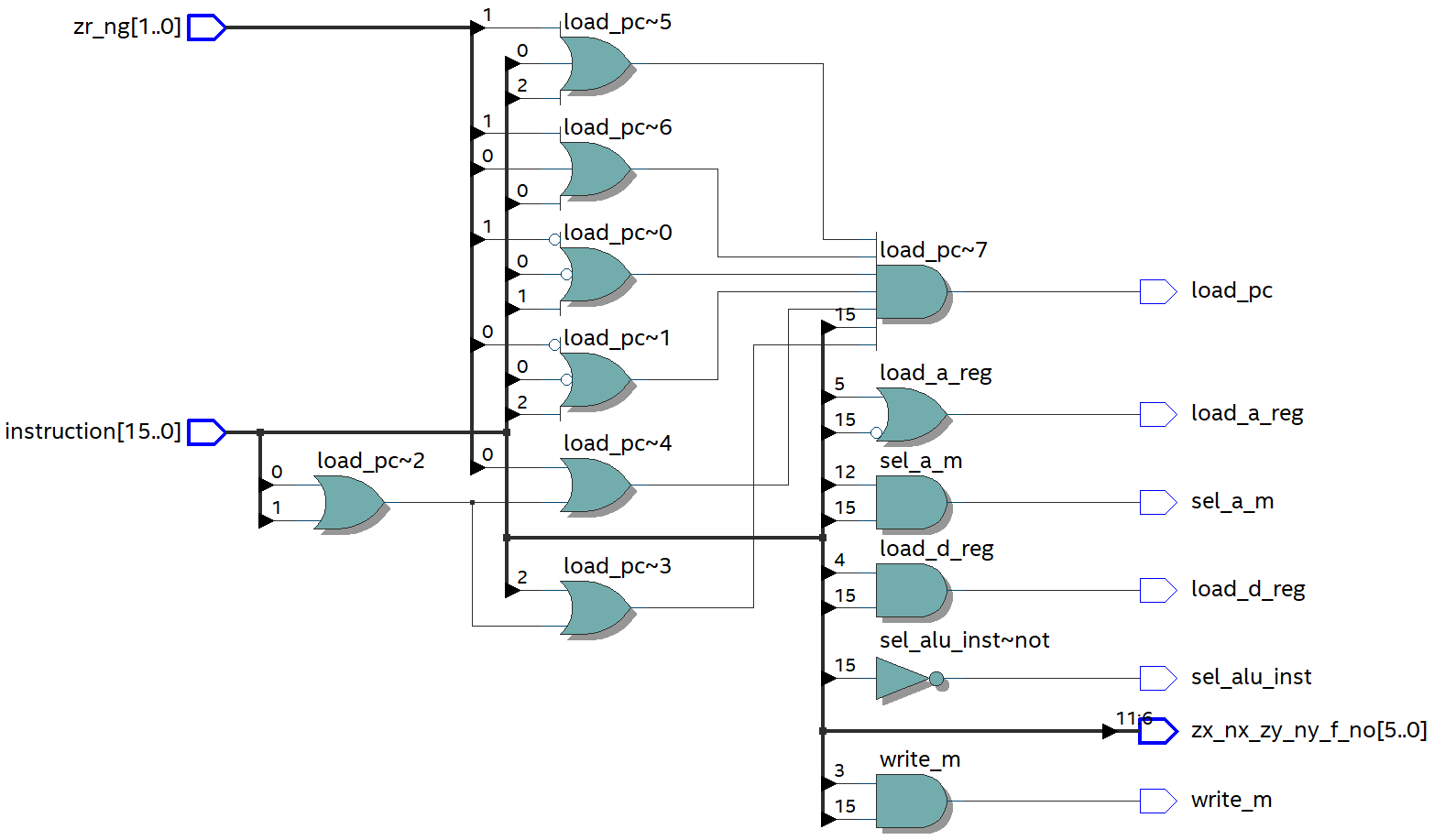

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;
use ieee.std_logic_misc.all;

entity instruction_decoder is
    port (
        instruction: in std_logic_vector(15 downto 0);
        zr_ng: in std_logic_vector(1 downto 0);

        sel_alu_inst: out std_logic;
        sel_a_m: out std_logic;

        load_a_reg: out std_logic;
        load_d_reg: out std_logic;
        load_pc: out std_logic;
        write_m: out std_logic;

        zx_nx_zy_ny_f_no: out std_logic_vector(5 downto 0)
    );
end entity;

architecture behavior of instruction_decoder is
    alias zr is zr_ng(1);
    alias ng is zr_ng(0);

    alias inst_msb is instruction(instruction'length-1);
    alias a is instruction(12);
    alias cccccc: std_logic_vector(5 downto 0) is instruction(11 downto 6);
    alias ddd: std_logic_vector(2 downto 0) is instruction(5 downto 3);
    alias jjj: std_logic_vector(2 downto 0) is instruction(2 downto 0);

begin
    -- a命令のときはinstをa regへ渡す。
    -- c命令のときはalu_outをa regへ渡す。
    sel_alu_inst <= not inst_msb;

    sel_a_m <= a and inst_msb;

    -- c命令であり、かつストア先がa regのときに1を立てて、次のクロックでa regを更新する。
    -- またはa命令であるときに1を立てて、次のクロックでa regを更新する。
    load_a_reg <=
        ddd(2) or not inst_msb;

    load_d_reg <= ddd(1) and inst_msb;
    write_m <= ddd(0) and inst_msb;

    zx_nx_zy_ny_f_no <= cccccc;

    load_pc <=
        (not jjj(0) or jjj(1) or not zr)     and
        (not jjj(0) or jjj(2) or not ng)     and
        (    jjj(0) or jjj(1) or     jjj(2)) and
        (    jjj(0) or jjj(1) or     ng)     and
        (    jjj(0) or jjj(2) or     zr)     and
        (    jjj(0) or ng     or     zr)     and
        inst_msb;

end architecture;
