アップダウンカウンターを作る

トップ値とボトム値とをパラメタライズしたアップダウンカウンターを作る。

↓ これが本体:

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity generic_counter_updown is
    generic(
        TOP_VAL   : natural := 10;
        BOTTOM_VAL: natural := 5;
        NUM_BITS  : natural := 4 -- ceil(log2(TOP_VAL + 1))
    );
    port(
        aclr_n: in  std_logic;
        clk   : in  std_logic;
        q     : out std_logic_vector(NUM_BITS-1 downto 0)
    );
end entity;

architecture rtl of generic_counter_updown is
begin
    process(clk, aclr_n)
        variable count: natural range BOTTOM_VAL to TOP_VAL := BOTTOM_VAL;
        variable diff : integer range -1 to 1 := 1;
    begin
        if aclr_n = '0' then
            count := BOTTOM_VAL;

        elsif rising_edge(clk) then
            if    count <= BOTTOM_VAL then diff :=  1;
            elsif count >= TOP_VAL    then diff := -1;
            end if;
            count := count + diff;

        end if;

        q <= std_logic_vector(to_unsigned(count, NUM_BITS));
    end process;
end architecture;

↓ これがテストベンチ(自動生成した) :

-- Copyright (C) 2020  Intel Corporation. All rights reserved.
-- Your use of Intel Corporation's design tools, logic functions
-- and other software and tools, and any partner logic
-- functions, and any output files from any of the foregoing
-- (including device programming or simulation files), and any
-- associated documentation or information are expressly subject
-- to the terms and conditions of the Intel Program License
-- Subscription Agreement, the Intel Quartus Prime License Agreement,
-- the Intel FPGA IP License Agreement, or other applicable license
-- agreement, including, without limitation, that your use is for
-- the sole purpose of programming logic devices manufactured by
-- Intel and sold by Intel or its authorized distributors.  Please
-- refer to the applicable agreement for further details, at
-- https://fpgasoftware.intel.com/eula.

-- ***************************************************************************
-- This file contains a Vhdl test bench template that is freely editable to
-- suit user's needs .Comments are provided in each section to help the user
-- fill out necessary details.
-- ***************************************************************************
-- Generated on "09/24/2021 16:19:51"

-- Vhdl Test Bench template for design  :  generic_counter_updown
--
-- Simulation tool : ModelSim-Altera (VHDL)
--

LIBRARY ieee;
USE ieee.std_logic_1164.all;

ENTITY generic_counter_updown_vhd_tst IS
END generic_counter_updown_vhd_tst;
ARCHITECTURE generic_counter_updown_arch OF generic_counter_updown_vhd_tst IS
-- constants
-- signals
SIGNAL aclr_n : STD_LOGIC;
SIGNAL clk : STD_LOGIC;
SIGNAL q : STD_LOGIC_VECTOR(3 DOWNTO 0);
COMPONENT generic_counter_updown
    PORT (
    aclr_n : IN STD_LOGIC;
    clk : IN STD_LOGIC;
    q : OUT STD_LOGIC_VECTOR(3 DOWNTO 0)
    );
END COMPONENT;
BEGIN
    i1 : generic_counter_updown
    PORT MAP (
-- list connections between master ports and signals
    aclr_n => aclr_n,
    clk => clk,
    q => q
    );

process
begin
    aclr_n <='1'; wait for 265 ns;
    aclr_n <='0'; wait for 30 ns;
    aclr_n <='1'; wait;
end process;

process
begin
    clk <= '0'; wait for 10 ns;
    clk <= '1'; wait for 10 ns;
end process;


END generic_counter_updown_arch;

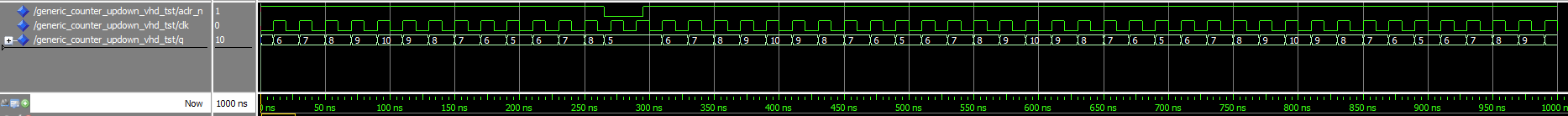

↓ これがRTLシミュレーションの結果:
